Features

Slim Profile – Only 1.00" Deep

Fits NEMA Size 56C Thru 184C Motor Faces (4.5" AK)

Incorporates Opto-ASIC Technology

Resolutions to 4096 CPR

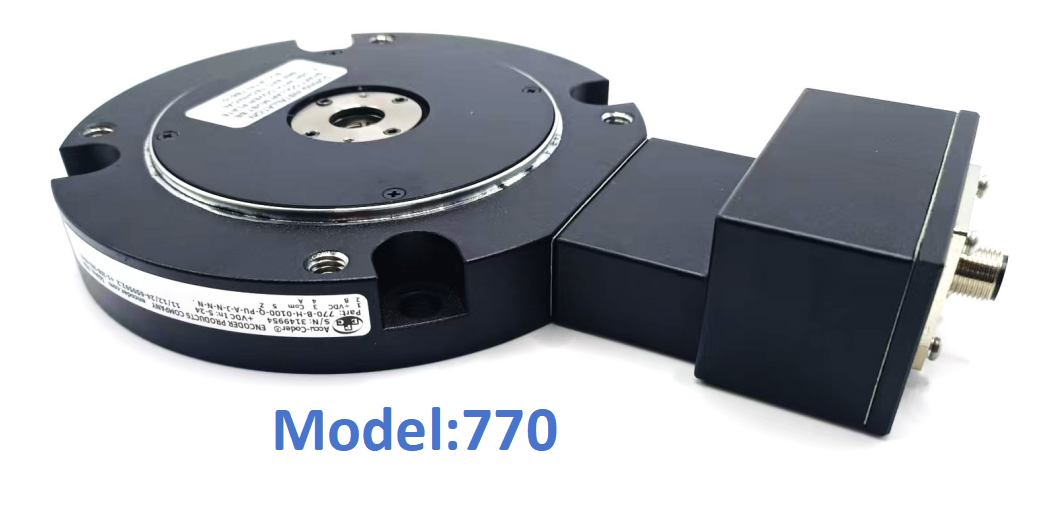

The Model 770 C-Face encoder is a rugged, high resolution encoder designed to mount

directly on NEMA C-Face motors. Both sides of the encoder are C-Face mounts, allowing

additional C-Face devicesto be mounted to this encoder. Unlike many C-Face kit type

encoders, the Model 770 contains precision bearings and an internal flex mount,

virtually eliminating encoder failures and inaccuracies induced by motorshaft runout or

axial endplay. The advanced Opto-ASIC design providesthe advanced noise immunity

necessary for many industrial applications. This encoder is ideal for applications using

induction motors and flux vector control. The Model 770 providesspeed and position

information for drive feedback in a slim profile – only 1.00"thick. The Thru-Bore design

allows fast and simple mounting of the encoder directly to the accessory shaft or to the

drive shaft of the motor, using the standard motor face (NEMA sizes 56C - 184C). The

tough, all-metal housing resiststhe vibration and hazards of an industrial environment.

COMMON APPlICATIONS

Motor Feedback, Velocity & Position Control, Conveyors, Variable Speed

Drives, Mixing & Blending Motors, Assembly & Specialty Machines
